CERAMIC COATED BEARINGS REQUIRE LUBRICATION

Ordering Part Number Sample: 1/4" Closed Twin Pillow Block
For Self Aligning Bearings add (SA) to Part Number

LPB 4T SA

LM76 Linear Motion Bearings are direct drop-in replacements for linear ball bearings

Part Number
CLOSED
Twin Pillow Block
Bearings		 Shaft
Diameter
Class L
Tolerance

Shaft
Tolerance

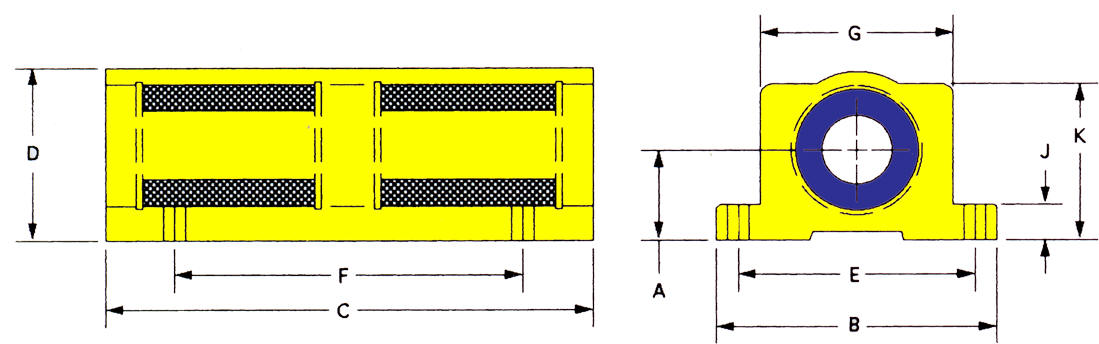

Max

 A
+/-
.002

B

C

D

E
+/-
.010

F
+/-
.010

G
Bolt Hole

 J
Min		 K

LPB -4T  1/4"

0.2495

.437

1-5/8

2-1/2

13/16

1.312

2

#6-5/32

 3/16 3/4
LPB- 6T 3/8"

0.3745

.500

1-3/4

2-3/4

15/16

1.437

2.250

#6-5/32

 3/16 7/8
LPB -8T 1/2"

0.4995

.687

2

3-1/2

1-1/4

1.688

2.500

#6-5/32

 1/4 1-1/8
LPB-10T 5/8"

0.6245

.875

 2-1/2

4

1-5/8

2.125

3

#8-3/16

 9/32 1-7/16
LPB-12T 3/4"

0.7495

.937

 2-3/4

4-1/2

1-3/4

2.375

3.500

#8-3/16

 5/16 1-9/16
LPB-16T 1"

0.9995

1.187

 3-1/4

6

 2-3/16

2.875

4.500

#10-7/32

 3/8 1-15/16
LPB-20T 1-1/4"

1.2495

1.500

 4

7-1/2

 2-13/16

3.500

5.500

#10-7/32

 7/16 2-1/2
LPB-24T 1.5"

1.4994

1.750

 4-3/4

9

 3-1/4

4.125

6.500

1/4-9/32

 1/2 2-7/8
LPB-32T 2"

2.9904

2.125

 6

10

 4.063

5.250

8.250

3/8-13/32

 5/8 3.625
