GOLD SERIES SYSTEM PDF
|
|
LM76 GOLD
SERIES LINEAR CARRIAGES
INCORPORATING LM76 TEFLON COMPOSITE, LINEAR
SELF-LUBRICATING |
|
|
|
SHAFT |
SINGLE |
TWIN |
A |
B |
C |
D |
E |
F |
G |
H |
J |
|
1/2 |
SSCA-8 |
TSCA-8 |
2.00 |
3.000 |
.69 |
.90 |
1.25 |
1.10 |
.25 |
1.062 |
3.50 |
|
5/8 |
SSCA-10 |
TSCA-10 |
2.50 |
3.750 |
.88 |
1.10 |
1.50 |
1.38 |
.25 |
1.250 |
4.00 |
|
3/4 |
SSCA-12 |
TSCA-12 |
2.75 |
4.500 |
.94 |
1.16 |
1.62 |
1.54 |
.25 |
1.437 |
4.50 |
|
1 |
SSCA-16 |
TSCA-16 |
3.25 |
5.250 |
1.19 |
1.46 |
1.88 |
1.98 |
.25 |
1.687 |
6.00 |
|
1-1/4 |
SSCA-20 |
TSCA-20 |
4.00 |
6.000 |
1.50 |
1.83 |
2.25 |
2.48 |
.25 |
2.250 |
7.50 |
|
1-1/2 |
SSCA-24 |
TSCA-24 |
4.75 |
6.625 |
1.75 |
2.09 |
2.69 |
2.91 |
.31 |
2.75 |
9.00 |
|
2 |
SSCA-32 |
TSCA-32 |
6.00 |
7.250 |
2.25 |
2.64 |
3.38 |
3.66 |
.38 |
3.375 |
10.00 |
|
SHAFT |
K |
M |
N |
P |
T |
W |
R |
L |
SSCA |
SSCA |
TSCA |
TSCA |
|
1/2 |
1.25 |
8.50 |
1.50 |
.25 |
.375 |
5.50 |
12.00 |
6.00 |
3900 |
3.29 |
3900 |
2.01 |
|
5/8 |
1.00 |
8.00 |
1.75 |
.25 |
.375 |
6.75 |
12.00 |
6.00 |
5880 |
4.60 |
5880 |
3.08 |
|
3/4 |
.75 |
7.75 |
1.88 |
.25 |
.500 |
7.75 |
12.00 |
6.00 |
7620 |
6.61 |
7620 |
4.27 |
|
1 |
.00 |
6.25 |
2.62 |
.25 |
.500 |
9.00 |
12.00 |
6.00 |
14100 |
9.95 |
14100 |
6.63 |
|
1-1/4 |
.25 |
4.75 |
3.38 |
.25 |
.750 |
10.50 |
12.00 |
8.00 |
20580 |
18.73 |
20580 |
14.54 |
|
1-1/2 |
1.50 |
10.00 |
3.75 |
.25 |
1.000 |
12.00 |
18.00 |
12.00 |
28200 |
35.34 |
28200 |
27.44 |
|
2 |
1.00 |
8.00 |
4.75 |
.25 |
1.250 |
14.00 |
18.00 |
12.00 |
50100 |
58.07 |
50100 |
48.04 |
|

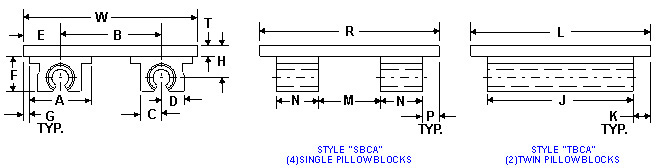

LINEAR SLIDE SYSTEMS INCORPORATING LINEAR BALL BEARINGS FOR DUAL SHAFT SUPPORT OR SINGLE (SMRA-) TYPE SUPPORT ASSEMBLY |
|
|
|
SHAFT |
SINGLE |
TWIN |
A |
B |
C |
D |
E |
F |
G |
H |
J |
|
1/2 |
SBCA-8 |
TBCA-8 |
2.00 |
3.000 |
.69 |
.90 |
1.25 |
1.10 |
.25 |
1.062 |
3.50 |
|
5/8 |
SBCA-10 |
TBCA-10 |
2.50 |
3.750 |
.88 |
1.10 |
1.50 |
1.38 |
.25 |
1.250 |
4.00 |
|
3/4 |
SBCA-12 |
TBCA-12 |
2.75 |
4.500 |
.94 |
1.16 |
1.62 |
1.54 |
.25 |
1.437 |
4.50 |
|
1 |
SBCA-16 |
TBCA-16 |
3.25 |
5.250 |
1.19 |
1.46 |
1.88 |
1.98 |
.25 |
1.687 |
6.00 |
|
1-1/4 |
SBCA-20 |
TBCA-20 |
4.00 |
6.000 |
1.50 |
1.83 |
2.25 |
2.48 |
.25 |
2.250 |
7.50 |
|
1-1/2 |
SBCA-24 |
TBCA-24 |
4.75 |
6.625 |
1.75 |
2.09 |
2.69 |
2.91 |
.31 |
2.75 |
9.00 |
|
2 |
SBCA-32 |
TBCA-32 |
6.00 |
7.250 |
2.25 |
2.64 |
3.38 |
3.66 |
.38 |
3.375 |
10.00 |
|
SHAFT |
K |
M |
N |
P |
T |
W |
R |
L |
SBCA |
SBCA |
TBCA |
TBCA |
|
1/2 |
1.25 |
8.50 |
1.50 |
.25 |
.375 |
5.50 |
12.00 |
6.00 |
720 |
3.29 |
740 |
2.01 |
|
5/8 |
1.00 |
8.00 |
1.75 |
.25 |
.375 |
6.75 |
12.00 |
6.00 |
1280 |
4.60 |
1280 |
3.08 |
|
3/4 |
.75 |
7.75 |
1.88 |
.25 |
.500 |
7.75 |
12.00 |
6.00 |
1880 |
6.61 |
1500 |
4.27 |
|
1 |
.00 |
6.25 |
2.62 |
.25 |
.500 |
9.00 |
12.00 |
6.00 |
3120 |
9.95 |
2720 |
6.63 |
|
1-1/4 |
.25 |
4.75 |
3.38 |
.25 |
.750 |
10.50 |
12.00 |
8.00 |
4680 |
18.73 |
3940 |
14.54 |
|
1-1/2 |
1.50 |
10.00 |
3.75 |
.25 |
1.000 |
12.00 |
18.00 |
12.00 |
6240 |
35.34 |
4740 |
27.44 |
|
2 |
1.00 |
8.00 |
4.75 |
.25 |
1.250 |
14.00 |
18.00 |
12.00 |
9400 |
58.07 |
4320 |
48.04 |
| NOTES: |
| • ALL LOAD RATINGS BASED ON APPLICATION POINT AT CENTER OF CARRIAGE PLATE. |
| • MATERIAL SPECIFICATIONS (CARRIAGE PLATE ): 6061-T6 ALUMINUM, STAINLESS STEEL |
| • STANDARD CARRIAGE PLATE FINISH: BLACK
ANODIZED, OPTIONAL CARRIAGE PLATE FINISH: UNPLATED, CLEAR , BLUE, OR GOLD ANODIZED ALUMINUM |
| • CUSTOM CARRIAGE ASSEMBLY INQUIRES CAN BE
FAXED OR EMAILED TO: (413-525-3735 ) or Call 1-800-513-3163 |
