Low Profile Aluminum Rail Support

Back to Linear Shafting Overview

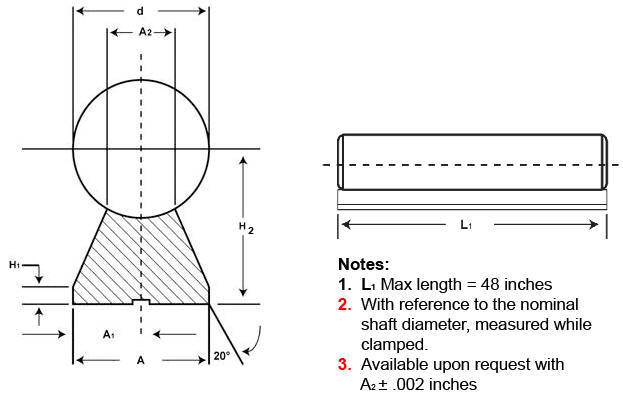

LSR Dimensions - Not Pre-Drilled
Shaft Dia. P/N Mass
lbs./ft		 Dimension = Inch
d A H2  (2
±.002		 H1 A1  (3 A2
1/2 LSR 8 .11 .50 .37 .562 .120 .185 .216
5/8 LSR 10 .17 .63 .45 .687 .120 .225 .269
3/4 LSR 12 .20 .75 .51 .750 .120 .255 .317
1 LSR 16 .35 1.00 .69 1.000 .120 .345 .422
1- 1/4 LSR 20 .44 1.25 .78 1.187 .200 .390 .523
1 - 1/2 LSR 24 .58 1.50 .93 1.375 .200 .465 .623
2 LSR 32 .89 2.00 1.18 1.750 .250 .590 .824

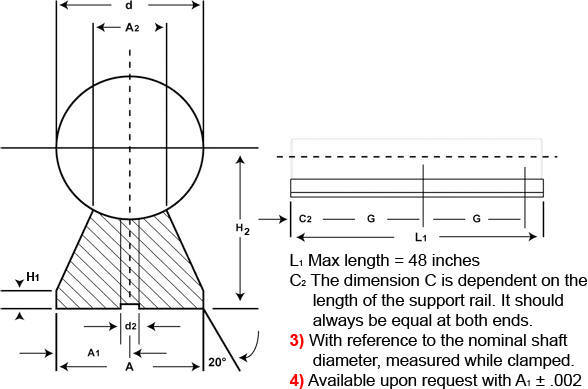

PRE-DRILLED LOW SUPPORT ALUMINUM SHAFT SUPPORT

LSRPD Dimensions
Shaft Dia. P/N Mass
lbs./ft		 Dimension = Inch
d A H2  (3
±.002		 H1 A1  (4 A2 d2 G
1/2 LSRPD-8 .11 .50 .37 .562 .120 .185 .216 .169 4
5/8 LSRPD-10 .17 .63 .45 .687 .120 .225 .269 .193 4
3/4 LSRPD-12 .20 .75 .51 .750 .120 .255 .317 .221 6
1 LSRPD-16 .35 1.00 .69 1.000 .120 .345 .422 .281 6
1- 1/4 LSRPD-20 .44 1.25 .78 1.187 .200 .390 .523 .343 6
1 - 1/2 LSRPD-24 .58 1.50 .93 1.375 .200 .465 .623 .406 8
2 LSRPD-32 .89 2.00 1.18 1.750 .250 .590 .824 .531 8
