The Micro
Stage family is composed of 2 construction
styles:
Lead Screw and
Ball Screw Simple, Packaged and Ready-To-Go
 |

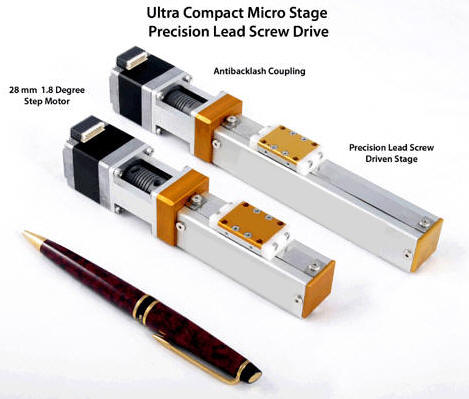

Micro Stage:
Lead Screw
Our first configuration is based
on a precision rolled lead screw. This product is designed
for the most compact cross section, but is more limited in
its load carrying characteristics.
It is however the most
economical and the smallest positioning product offered by
LM76.
This product is ideal for
applications calling for the most compact design carrying
light loads
from point to point. We stock complete units for
immediate shipment.

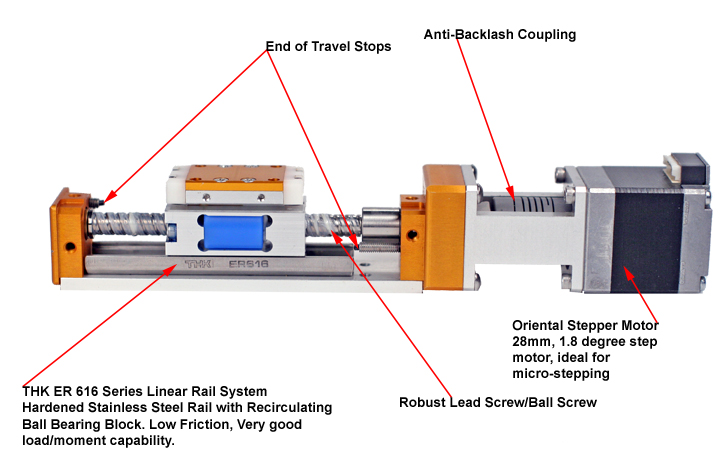

Key features include:
Precision Lead Screw driven stage
Small footprint
28mm, 1.8 degree step motor, ideal
for micro-stepping
Anti-backlash
coupling
Optional End of Travel and Home limit
switches
Optional Rotary Encoder mounted on
motor

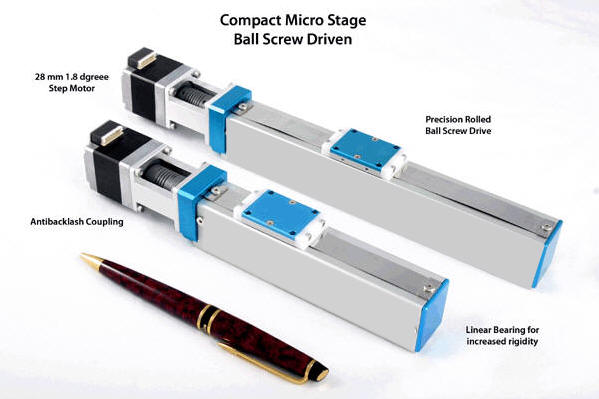

Micro Stage:
Ball Screw
Our second configuration is based
on a precision rolled ball screw. While a slightly larger
|cross section,
the ball screw drive Micro Stage will handle considerably
more load than the
lead screw driven stage,
and is available in the longest travel lengths. This product
is ideal for
applications calling for a compact design
carrying moderate loads from point to point.
We stock
complete units for immediate shipment.
Key features include:
Precision Rolled Ball Screw driven
stage
Small footprint
28mm, 1.8 degree step motor, ideal
for micro-stepping
Anti-backlash
coupling
Optional End of Travel and Home limit
switches
Optional Rotary Encoder mounted on
motor
|
