For Immediate Release

 Jan 2007

Send Inquiries to--
LM76
140 Industrial Dr.
E. Longmeadow, MA 01028
1-800-513-3163

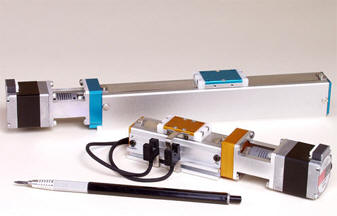

Off-The-Shelf Micro-Positioning Stages

Feature 0.01 mm Repeatability!

E. Longmeadow, MA  - New!  Ready-to-run, compact, low cost, high quality,
micro-positioning stages, from LM76, Inc., are now available “Off-theShelf” in
travel lengths from 10 mm to 200mm. These Micro Stage linear positioning stages
are available with 6 mm lead anti-backlash lead screws or 4 mm lead heavy duty
ball screws.  They are ideal for: pick-and-place, assembly, sampling, testing, robotics, and other precision positioning applications.

 The Lead Screw Micro Stage linear positioning stages are available in three
travel lengths, 10 mm, 30 mm, and 40 mm.  Features include:  0.03 mm repeatability, 0.03 mm/full step resolution, max speeds of 50, 80, 100 mm/sec., and the max load
for all lead screw stages is 4.9 N (0.5 kgf).

 The Ball Screw Micro Stage positioning stages are available in four travel
lengths, 40 mm, 60 mm, 120 mm, and 200 mm.  Features include:  0.01 mm repeatability, 0.02 mm/full step resolution, max speed 120 mm/sec., and the
max load for all ball screw stages is 39.2 N (4.0 kgf).

 The standard 28 mm stepping motor can be micro-stepped and it also can be supplied with an optional encoder for closed loop operation.  These Micro
Stage linear positioning stages have stainless steel way covers, and these
light weight stages  can also be mounted verticaly (z-axis). Optional End-of-Travel limit switches are easily adjustable.  On the LM76 Web site (http://www.lm76.com)
2D and 3D CAD drawings can be downloaded for easy integration of the
positioning stages into new and existing applications.

 Founded in 1976, LM76 has been a leading designer/manufacturer of linear bearings,
slides and linear motion systems.  LM76 is renowned for its industry leading Minuteman Teflon
® Composite linear bearings.  LM76 is a leading supplier of precision linear shafting: RC60, 300 Series Stainless Steel, and ceramic coated aluminum shafting.  LM76 also
offers several FDA/USDA compliant linear bearings and slides for the food processing, pharmaceutical, medical, and packaging industries.

 For additional information contact Mike Quinn at: LM76, 140 Industrial Dr.

E. Longmeadow, MA 01028; Telephone: 413-525-4166, Fax: 413-525-3735 or
E-Mail: mquinn@lm76.com or visit the Web site at: http://www.lm76.com.
