HK Manual Locking Clamps

For use with most manufacturers' rail to brake or lock bearings into a fixed position. An economical
way to manually stop the sliding motion of linear guides.

  • Very simple yet robust design achieves highly effective manual braking.
  • HK manual clamping units are intended for STATIC holding only. Using them for dynamic braking is not recommended and could damage the linear rail.
  • Models available to fit virtually all sizes of linear rail by all major manufacturers:
    • Hiwin
    • THK
    • Rexroth Bosch Group
    • Schneeberger
    • IKO
    • INA
    • NSK
    • SKF
    • Star Linear

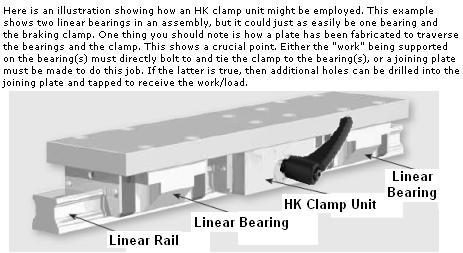

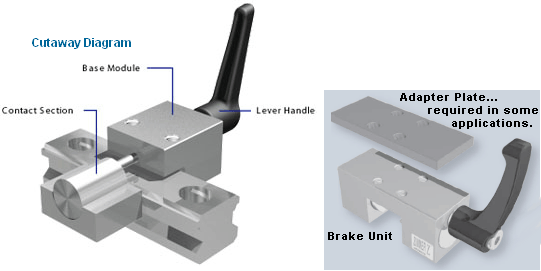

  • Adapter plate is required in some applications to elevate the height of the brake mechanism to equal that of the bearing/guide.
  • For application information for Hiwin products, refer to charts below. For other manufacturers' rail, please download the PDF document at the bottom of this page or contact us for assistance.


For more information or to obtain application information for these HK manual clamping brakes on rail from manufacturers such as THK, Rexroth Bosch Group, Schneeberger, IKO, INA, NSK or SKF, download this 12-page
          PDF document (250kb).
