SELF LUBRICATING TWIN PILLOW BLOCK BEARINGS - OPEN
Make sure your self lubricating linear bearing has the MINUTEMAN GREEN LINER

 Pillow Block Part Number Sample: 1/4" Open Twin Pillow Block
For Self Aligning Bearings add (SA) to Part Number

LXPB

4TSL

SA

LM76 Linear Motion Bearings are direct drop-in replacements for linear ball bearings

P/N

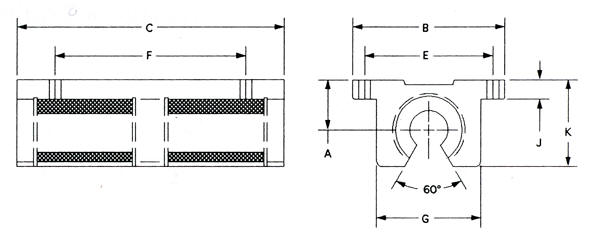

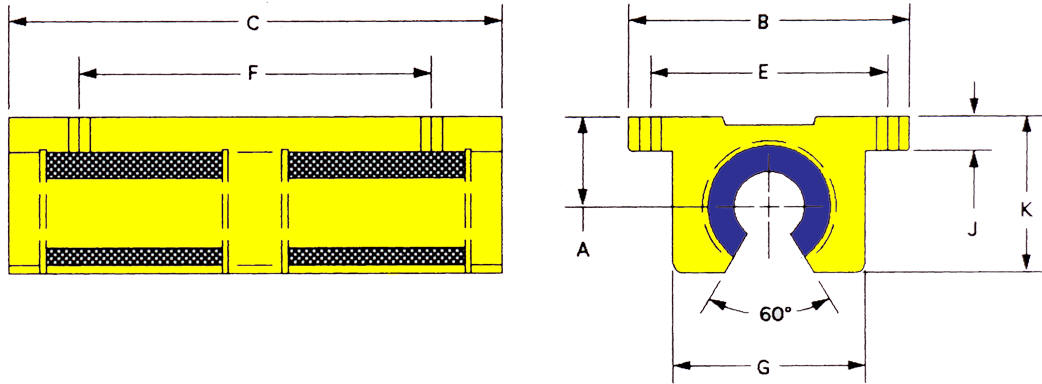

Working Bore            A

B

C

D

E

F

G

Bolt

Hole

J Min

K

Inches

Tol.

+/-.002

+/-.010

+/-.010

LXPB-4TSL

.2505

+.001

.437

1-5/8

2-1/2

13/16

1.312

2.000

1

#6

5/32

3/16

3/4

LXPB-6TSL

.3755

+.001

.500

1-3/4

2-3/4

15/16

1.437

2.250

1-1/8

#6

5/32

3/16

7/8

LXPB-8TSL

.5005

+.001

.687

2

3-1/2

1-1/4

1.688

2.500

1-3/8

#6

5/32

1/4

1-1/8

LXPB10TSL

.6255

+.001

.875

2-1/2

4

1-5/8

2.125

3.000

1-3/4

#8

3/16

9/32

1-7/16

LXPB12TSL

.7505

+.001

.937

2-3/4

4-1/2

1-3/4

2.375

3.500

1-7/8

#8

3/16

5/16

1-9/16

LXPB16TSL

1.0008

+.001

1.187

3-1/4

6

2-3/16

2.875

4.500

2-3/8

#10

7/32

3/8

1-15/16

LXPB20TSL

1.2508

+.001

1.500

4

7/1/2

2-13/16

3.500

5.500

3

#10

7/32

7/16

2-1/2

LXPB24TSL

1.5008

+.0015

1.750

4-3/4

9

3-1/4

4.125

6.500

3-1/2

1/4

9/32

1/2

2-7/8

LXPB32TSL

2.0012

+.0015

2.125

6

10

4.063

5.250

8.250

4.500

3/8

13/32

5/8

3.625
