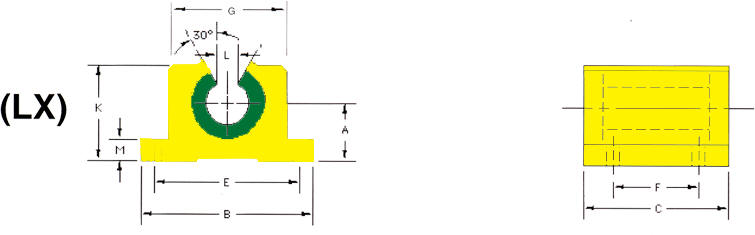

SELF LUBRICATING SINGLE PILLOW BLOCK BEARINGS - OPEN




Ordering Part Number Sample: 1/4" Open Pillow Block
For Self Aligning Bearing add (SA) to Part Number

LXPB 408-6SL SA

LM76 Linear Motion Bearings are direct drop-in replacements for linear ball bearings

Part Number
OPEN
Inch
Pillow Blocks		 Shaft
Diameter
Class L
Tolerance

Shaft
Tolerance
Max

 A
+/-
.003

B

C

D

E
+/-
.010

F
+/-
.010

G

Bolt Hole

 K L
Min		 M
Min
LXPB 408-6SL  1/4"

0.2495

.437

1-5/8

1-3/16

13/16

1.312

.750

1

#6-5/32

 3/4 3/32 3/16
LXPB 610-7SL 3/8"

0.3745

.500

1-3/4

1-5/16

15/16

1.437

.875

1-1/8

#6-5/32

 7/8 9/64 3/16
LXPB 814-10SL 1/2"

0.4995

.687

2

1-11/16

1-1/4

1.688

1.000

1-3/8

#6-5/32

 1-1/8 5/16 1/4
LXPB 1018-12SL 5/8"

0.6245

.875

 2-1/2

1-15/16

1-5/8

2.125

1.125

1-3/4

#8-3/16

 1-7/16 3/8 9/32
LXPB 1220-13SL 3/4"

0.7495

.937

 2-3/4

2-1/16

1-3/4

2.375

1.250

1-7/8

#8-3/16

 1-9/16 7/16 5/16
LXPB 1625-18SL 1"

0.9995

1.187

 3-1/4

2-13/16

 2-3/16

2.875

1.750

2-3/8

#10-7/32

 2 9/16 3/8
LXPB 2032-21SL 1-1/4"

1.2495

1.500

 4.00

3-5/8

 2-13/16

3.500

2.000

3

#10-7/32

 2-1/2 5/8 7/16
LXPB 2438-24SL 1.5"

1.4994

1.750

 4-3/4

4

 3-1/4

4.125

2.500

3-1/2

1/4-9/32

 2-7/8 3/4 1/2
LXPB 3248-32SL 2"

2.9904

2.125

 6

5

 4-1/16

5.250

3.250

4-1/2

3/8-13/32

 3-5/8 1 5/8
