FDA/USDA/3 A Dairy/Caustic Washdown Compliant
Slef-Lubricating Linear Bearings



PSI PV Coefficient of Friction WashDown FDA/USDA
Compliance
Shaft MAX Speed
1000 10,000 .15 - .2 excellent Yes 300 Series Stainless
Class Rb25
400 SFM

FDA, Self Lube ETX
Scraper Seals
see more...

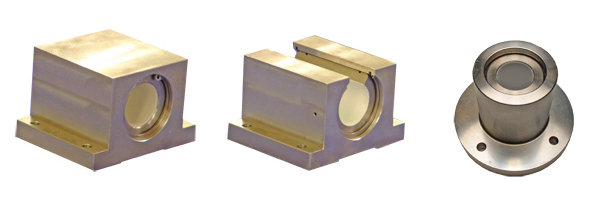

FDA Compliant Electroless Nickel Plated Blocks are available in standard inch configurations

CLOSED Part Number

L 610 FDA

LM76FDA/USDA Compliant Linear Motion Bearings feature a 304Stainless Steel Shell which is lined
with A FDA/USDA Compliant, Self Lubricating, Liner.

Washdown - Food Service - Inclusion Resistant - Chlorine Dilution Friendly -Rugged

LM76 Linear Motion Bearings are direct drop-in replacements for linear ball bearings

Part Number
CLOSED

Bearing
Size

A

Working
Bore

ID Bore
Tolerance

Outside
Diameter

B

OD
Tolerance

Bearing
Length

C

Length
Tolerance

Distance
Between Retaining
Ring Grooves
D

Bearing
Weight
LBS.

L610-7FDA 3/8"

0.3755

0.0010

0.6250

0.0010

0.875

0.015

0.562

0.016

L814FDA 1/2"

0.5005

0.0010

0.8750

0.0010

1.250

0.015

0.875

0.041

L1018FDA 5/8"

0.6255

0.0010

1.1250

0.0010

1.500

0.015

1.000

0.091

L1220FDA 3/4"

0.7508

0.0010

1.2500

0.0010

1.625

0.015

1.062

0.109

L1625FDA 1"

1.0008

0.0010

1.5625

0.0010

2.250

0.015

1.625

0.228

L2032FDA 1-1/4"

1.2508

0.0010

2.0000

0.0010

2.625

0.020

1.875

0.459

L2438FDA 1.5"

1.5008

0.0015

2.3750

0.0015

3.000

0.020

2.250

0.750


OPEN Part Number

LX 610 FDA

Part Number
OPEN

Bearing
Size

A

Working
Bore

ID Bore
Tolerance

Outside
Diameter

B

OD
Tolerance

Bearing
Length

C

Length
Tolerance

Slot
Width
+.020
-.000

Distance
Between Retaining
Ring Grooves

D

Bearing
Weight
LBS.

LX610FDA 3/8"

0.3755

0.0010

0.6250

0.0010

0.875

0.015

0.156

0.562

0.013

LX814FDA 1/2"

0.5005

0.0010

0.8750

0.0010

1.250

0.015

0.312

0.875

0.034

LX1018FDA 5/8"

0.6255

0.0010

1.1250

0.0010

1.500

0.015

0.375

1.000

0.072

LX1220FDA 3/4"

0.7508

0.0010

1.2500

0.0010

1.625

0.015

0.438

1.062

0.091

LX1625FDA 1"

1.0008

0.0010

1.5625

0.0010

2.250

0.015

0.563

1.625

0.184

LX2032FDA 1-1/4"

1.2508

0.0010

2.0000

0.0010

2.625

0.020

0.625

1.875

0.381

LX2438FDA 1.5"

1.5008

0.0015

2.3750

0.0015

3.000

0.020

0.750

2.250

0.630
