EL300B SPEED DEMON Carriage Block
 Non-powered Linear Slide Assembly

Wide 5" Square Mounting Block - High Stiffness - Low Overall Height
Smooth/Quiet Operation - Low Friction - Easy Install - Low Cost
Adjustable Pre-load - Rollers vs. Balls



Sample Assembly P/N EL300B - ELR300-3000mm
Block - Rail Length ( see rail lengths below )

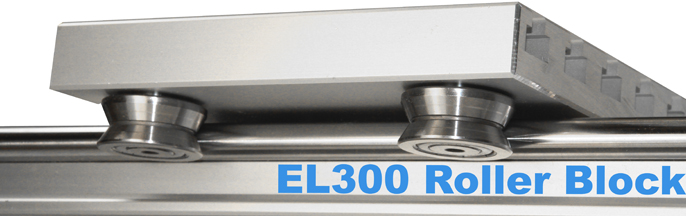

A superb low friction, high speed, twin rail, linear roller block system. This system balances smooth linear motion and excellent load capability with efficient and easy installation. This system is maintenance free, adjustable and lightweight. Our Twin Rail base is cast aluminum and provides for rigid, stable mounting.

  FEATURES

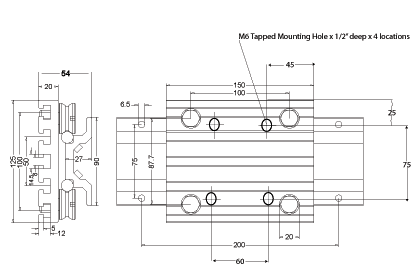

  Consists of flat milled aluminum plate 150 x 125 x 20 mm with five longitudinal "T" slots for M6, DIN 508 T-nuts for easy mounting. There are 4 drilled and tapped M6 Mounting holes.
  Four precision 31 mm guide rollers are on each plate. Each roller has two rows of sealed bearings and are lubricated for life
  Maximum linear speeds up to 10 m/sec
  Two of the four guide rollers have eccentric pivots by which the desired preload of carriage can be adjusted
  The preload capability allows for
play-free operation


Maximum Load (N)

  Fz Fy
2600
1300
Static Dynamic 2800
1400



  PDF Catalog

Maximum Moment (N* m)

  Mx My Mz

Static Dynamic

 125
62 		165
80 		82
40

EL 300 SPEED DEMON RAILS
 Rails are available in standard lengths. Cutting charge applies for special lengths

Length
mm

 Part
Number
400 ELR300-400mm
500 ELR300-500mm
600 ELR300-600mm
700 ELR300-700mm
800 ELR300-800mm
900 ELR300-900mm
1000 ELR300-1000mm
1100 ELR300-1100mm
1200 ELR300-1200mm
1300 ELR300-1300mm
1400 ELR300-1400mm
1500 ELR300-1500mm
1800 ELR300-1800mm
2000 ELR300-2000mm
2500 ELR300-2500mm
3000 ELR300-3000mm

FEATURES

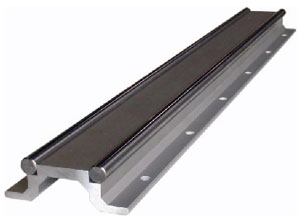

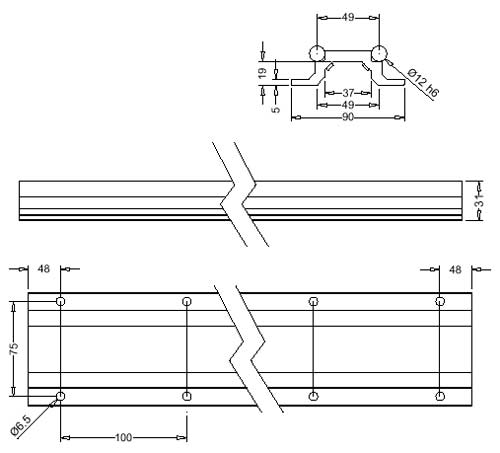

Two guide rails supported uniformly through the length of travel by clear anodized, 90 mm wide aluminum support profile   The support profile has mounting holes 75 mm apart at 100 mm intervals along the system length. This allows for easy mounting to our Heavy-Duty Extrusion Plates or other mounting surfaces
Guide rails consist of two precision ground �12 mm h6 steel shafts with M5 threaded holes spaced 100 mm apart. The shafts are hardened to RC62 +2   The two rails are each supported by and attached to the support profiles every 100 mm at 45 o to profile, ensuring they are parallel


The double rail and support profile is sold as a complete assembly in lengths from 400 mm to 3000 mm   The extra wide rail spacing and base design provide high torsional stability and torque load capacity
