Full Jet Bearing Slide Tables
1-800-513-3163

The Jet Rail Full Slide is a complete system, pre-assembled, pre-aligned and factory tested
that is ready for installation and motor mounting. Full Slide systems can be purchased in two
standard configurations, with shafting "fully supported" or "end supported". These full slide systems
are manufactured using LM76 Roller Bearing Pillow Blocks and our precision case hardened and
|ground 60 Plus® or 440C stainless steel shafting. The support rails, end supports, and carriage
plates used in these systems are machined from tempered (T6) aluminum.






Full Slide Table

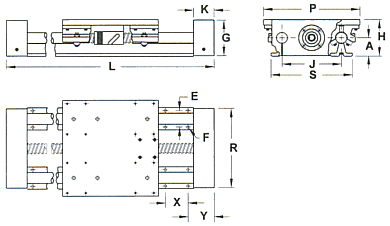

FULLY SUPPORTED SLIDE TABLES

PART NO.

SHAFT DIA.

TOTAL B.D.R. (LBS.)

A

F1

G

H

J

K

K1

K2

P

Q

R

R1

W

SFSR08FS

1/2

1600

1.125

0.19

2.38

2.187

4.25

1.50

0.75

0.38

5.50

5.30

4.25

4.80

0.48

SFDR08FS

1/2

3200

1.125

0.19

2.38

2.187

4.25

1.50

0.75

0.38

5.50

5.30

4.25

4.80

0.48

SFSR16FS

1

3820

1.750

0.28

3.37

3.437

5.50

2.20

1.20

0.50

9.00

8.70

7.25

8.00

0.60

SFDR16FS

1

7640

1.750

0.28

3.37

3.437

5.50

2.20

1.20

0.50

9.00

8.70

7.25

8.00

0.60

SFSR24FS

1-1/2

6640

2.500

0.34

4.87

5.000

8.00

2.80

1.50

0.65

13.00

13.00

10.75

12.00

0.81

SFDR24FS

1-1/2

13280

2.500

0.34

4.87

5.000

8.00

2.80

1.50

0.65

13.00

13.00

10.75

12.00

0.81


Full Slide Table

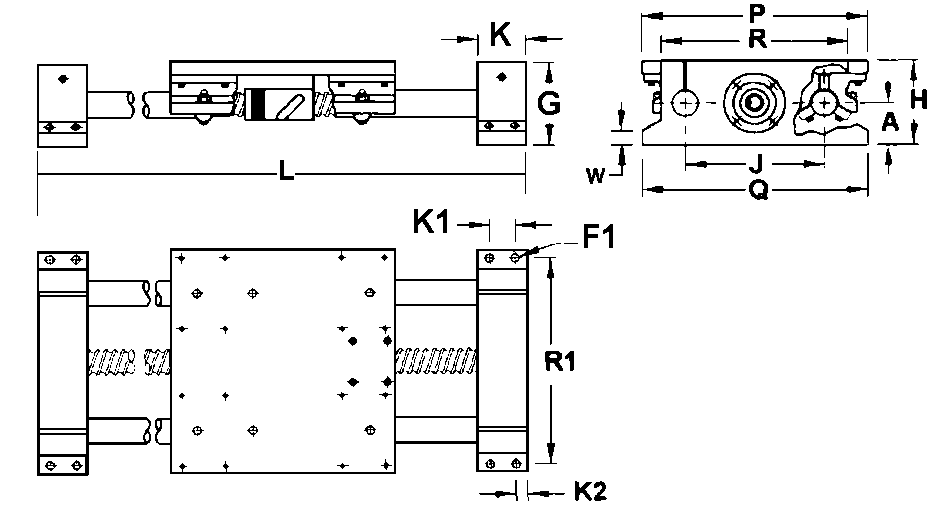

END SUPPORTED SLIDE TABLES

PART NO.

SHAFT DIA.

TOTAL B.D.R. (LBS.)

A

F1

G

H

J

K

K1

K2

P

Q

R

R1

W

SFSR08ES

1/2

1600

1.125

0.19

2.38

2.187

4.25

1.50

0.75

0.38

5.50

5.30

4.25

4.80

0.48

SFDR08ES

1/2

3200

1.125

0.19

2.38

2.187

4.25

1.50

0.75

0.38

5.50

5.30

4.25

4.80

0.48

SFSR16ES

1

3820

1.750

0.28

3.37

3.437

5.50

2.20

1.20

0.50

9.00

8.70

7.25

8.00

0.60

SFDR16ES

1

7640

1.750

0.28

3.37

3.437

5.50

2.20

1.20

0.50

9.00

8.70

7.25

8.00

0.60

SFSR24ES

1-1/2

6640

2.500

0.34

4.87

5.000

8.00

2.80

1.50

0.65

13.00

13.00

10.75

12.00

0.81

SFDR24ES

1-1/2

13280

2.500

0.34

4.87

5.000

8.00

2.80

1.50

0.65

13.00

13.00

10.75

12.00

0.81


BALL SCREW SPECIFICATIONS

SYSTEM SIZE

STD. BALL SCREW DIA.

STD. BALL SCREW PITCH

.50

5/8"

5/8"

.50

5/8"

5/8"

1.00

1"

1"

1.00

1"

1"

1.50

1-1/2"

1-1/2"

1.50

1-1/2"

1-1/2"
