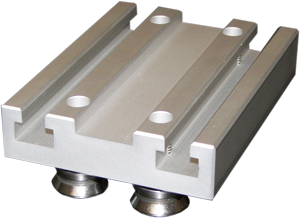

LRBT - 2 Roller Carriage
  FEATURES

· For use with LRBT-2
· Low profile
· Low cost
· 4 Rollers per carriage

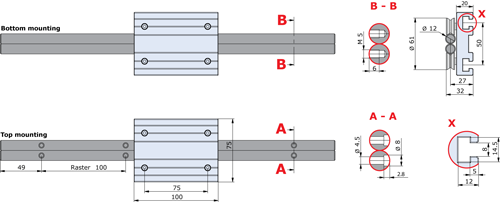

· 100 x 75 x 20 mm (L x W x H)
· T-slot carriage for clamping
· Max speed 10 m/s
· Weight: .6 Lbs.





TABLE 1:
 Maximum static and dynamic load capacity as a function of the angle A, of the applied force F.

Maximum Load (N) F1 F2
Static 2,200 1,100
Dynamic 2,099 2,500

Maximum Load (Lbs.)

F1

F2

Static

494

247

Dynamic

471

562

TABLE 2:
 Maximum permissible moment for carriages.

Maximum Moment (N*m)

 MX MY MZ
Static 45.3 82.5 41.2
Dynamic 43.2 78.7 93.7
Maximum Moment (lb/ft) MX MY MZ
Static 33 60 30
Dynamic 31 58 69
