Make Sure Your Self Lubricating Linear Bearing has the Minuteman Green Liner!



Glass Epoxy Shell with Minuteman Self Lubricating Liner. CLOSED ONLY

 HIGH IMPACT/SHOCK/VIBRATION Resistant
PSI PV SFM Shaft Hardness Coefficient of Friction
5000 30,000 400 RC60, 300 Stainless Steel
Ceramic Coated Aluminum
 Runs Great on Both Hardened & Soft Shafting		 .09 - .12

Number
CLOSED

SIZE

Bearing
Size ID

 A

 ID

Tolerance

 OD


B		 OD

Tolerance


Housing Bore

MIN


Housing Bore

MAX

Bearing
Length

C

Length
Tolerance

Distance
Between Retaining
Ring Grooves

D
LFG-8 1/2" .5015/.5005 7/8" .87500/.87350

0.8750

 .8757

1.250

 1.2500/1.2350

1.012
LFG-10 5/8" .6255/.6265 1 1/8" 1.1250/1.2350 1.1250 1.1258

1.500

 1.5000/1.4850

1.095
LFG-12 3/4" .7515/.7505 1 1/4" 1.2500/1.2480 1.2500 1.2510

1.625

 1.6250/1.6100

1.250
LFG-16 1" 1.0015/1.0005 1 9/16" 1.5625/1.5605 1.5625 1.5635 2.250 2.2500/2.2350

1.864

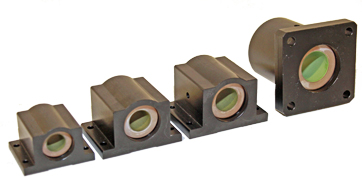

Closed LFG Pillow Blocks & Flange Blocks


Part Number
CLOSED
Pillow Block
Bearings		 Shaft
Diameter
Class L
Tolerance

Shaft
Tolerance
Max

 A
+/-
.003

B

C

D

E
 +/-
.010

F
 +/-
.010

G

Bolt

 K L
 		M
LPBLFG-8 1/2"

0.4995

.687

2

1-11/16

1-1/4

1.688

1.000

1-3/8

#6-5/32

 1-1/8 5/16 1/4
LPBLFG-10 5/8"

0.6245

.875

 2-1/2

1-15/16

1-5/8

2.125

1.125

1-3/4

#8-3/16

 1-7/16 3/8 9/32
LPBLFG-12 3/4"

0.7495

.937

 2-3/4

2-1/16

1-3/4

2.375

1.250

1-7/8

#8-3/16

 1-9/16 7/16 5/16
LPBLFG-16 1"

0.9995

1.187

 3-1/4

2-13/16

 2-3/16

2.875

1.750

2-3/8

#10-7/32

 2 9/16 3/8




Self Lube

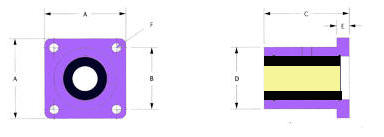

Flange Block
Sizes		 Shaft
Diameter
Class L
Tolerance

Shaft
Tolerance
Max

 A


B
 +/- .010

C

D

E
+/-
.010



 F
LFLFG 8   1/2"

0.4995

1-5/8

1-5/8

1-11/16

1-1/4

1/4

#8

 3/16
LFLFG 10 5/8" .6245 2   1 15/16 1 1/2 1/4 #8 3/16
LFLFG 12 3/4"

0.7495

2-3/8

1-3/4

2-1/16

1-3/4

3/8

#10

 7/32
LFLFG 16 1"

0.9995

2.750

2.125

2-13/16

2-1/4

1/2

1/4

 9/32

●High load capacity/high-shock load capability
  Incredible compression loads that literally crush competing composite materials.

●Self-lubricating design
  Provides maintenance-free operation and eliminates the need for costly lubrication systems.

●Low coefficient of friction
   Reduces wear and extends operating life. Coefficients as low as 0.05 in dry applications and
   <0.009 in lubricated environments.

●Temperature resistant
  Operates flawlessly in temperatures ranging from cryogenic levels to a high of 300°F (149C )

● Dimensionally stable in fluids (water, corrosive liquids, and chemical solutions)
   Absorption rates are negligible, providing near-zero swell

●Flexible material design
  Suitable for press fit, freeze fit, epoxy bonding, as well as conventional mechanical retention.

●Low weight/high strength
    Accommodates high-load with a compact strength to weight ratio


Advantages:

  • Self Lubricating

  • Lightweight/Non-Metallic

  • Chemically Inert

  • Electrically Insulated

  • Impact Resistant



Applications:

  • Military Vehicles/Gun Mounts

  • Marine Applications

  • Washdown Equipment

  • Packaging Machinery

  • Outdoor Environments

  • Construction Equipment

* NOTE: LFG bearings do not have O-Ring Grooves. Call factory if you desire them:
1-800-513-3163
