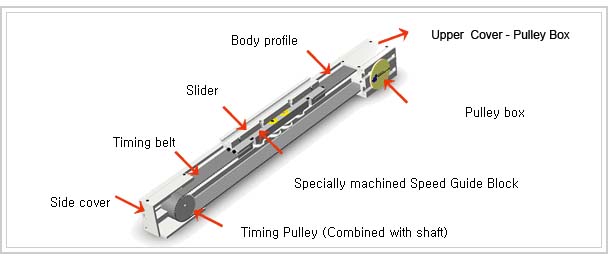

SERO ( a
belt driven actuator ) is a light, high speed module constructed of
an aluminum body in combination with a precision linear shafts and
slider. Belt tension is easily adjusted by an adjustment
screw.
-
Maximum
speed: 8 m/s Running Accuracy: 0.08 mm/m
-
Maximum
Length: 4M without any joints ( 6m available as special order )
-
Belt:
HTD5 or S5M built-in core. No backlash on turning point
-
Repeatability: +/- 0.05mm
SERO offers
easy adjustment for clearance and guarantees smooth, quiet
operation.
SERO Actuators offer high speed, high load capacity, high running
accuracy and feature a dust proof construction. There are 4 sizes:
-
SD 41
-
SD 61
( TYPE 1 )
-
SD 61
( TYPE 2 )
-
SD 81
How to order?
Order Example:
SDO61 - S1000 - SM -3 ( SD 61 - stroke
1000mm - belt type S5M-order -qty- 3pieces) |
