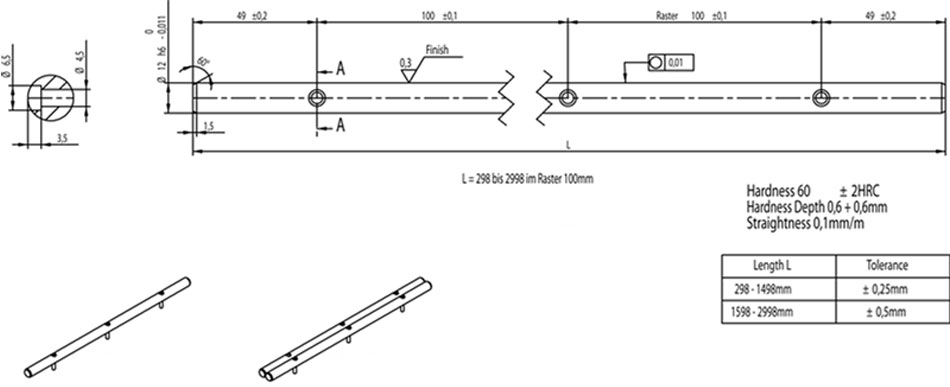

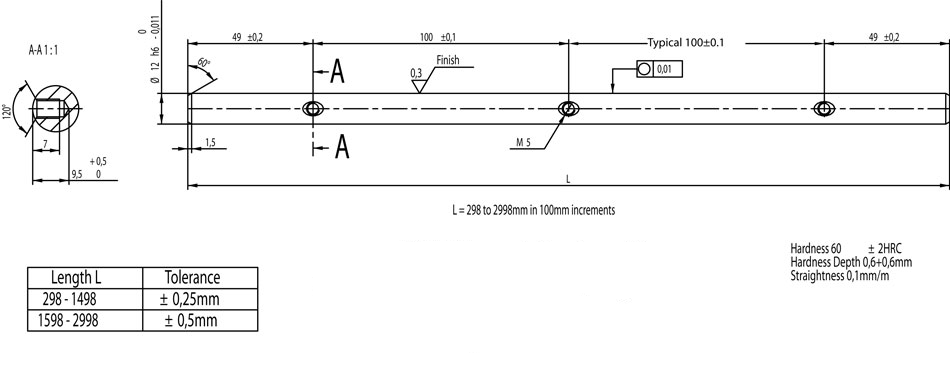

LowRider LRBS & LRBT RAILS

Hardened shafts, accuracy grade h6, hardened to RC 62 + 2.

Two mounting options; bottom mount via M4 thread.

Top mount via counter-bored holes for M4 screws

Lightweight, high stiffness

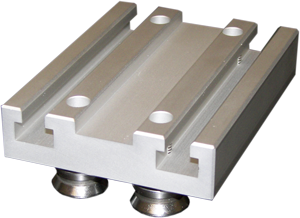

Mating v-groove rollers

Twin Shaft System has roll moment capability

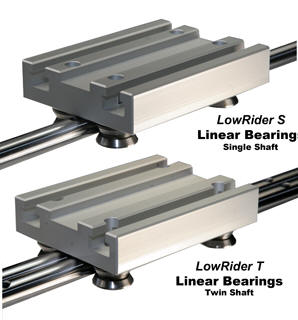

LM76 LowRider Linear Motion Bearings™ offer an
exceptionally low profile mounting, high speeds and convenient assembly. There are 2 options, single and twin shaft systems. The Single Shaft system should be employed in pairs or have some
kind of stabilizing member/outrigger. The Twin Shaft
system is designed to operate individually due to it's
roll moment stability.

NO SUPPORTS REQUIRED. DRILL, TAP, FASTEN and YOU'RE DONE! WE EVEN SUPPLY THE SCREWS!
