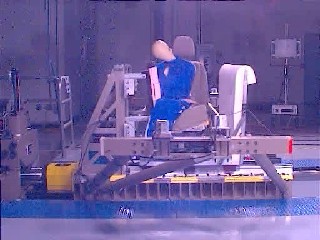

Record Braking G Forces ( 100G's accel ): Crash test System - Video

Linear Motion Bearings, the leader in plain style linear motion bearing technology, is proud to announce
their Linear Motion Tables. LM76 Linear tables feature the industry leading Minuteman™
PTFE Self Lubricating Composite linear bearing and LM76’s Proprietary Jet Shafting™.

LM76 Linear Tables excel in applications which present problems for traditional rolling element bearings.
Applications which see rapid oscillation, contamination, high accel/decel, high loads, shock and vibration,
washdown and require quiet resonance-free operation are all sterling candidates
for LM76 Linear Motion Systems.

All linear slides feature LM76’s Proprietary Jet Shafting which resists "sticktion" (breakaway friction) and prevents
shaft corrosion. It is important to remember that once a system is in motion, it generally provides consistent
frictional operation. However, start-up or breakaway friction can cause "lost time" and can result in system wear.
Another issue that arises when using self-lubricating PTFE composite bearings line Minuteman™ is shaft
corrosion – there is no protective lubricant being applied to shafting. Jet Shafting’s tough finish protects expensive
shafting from corrosion even in washdown applications!

Linear Tables are available in the following formats:

·     Single Rail Assemblies with 1-2 open style pillow blocks or with 1-2 Twin, open style pillow block assemblies.

·     Plate Mounted X, Y, or Z axis systems featuring ball screws (rolled or ground).

·     And, Multiple Axes Linear Slides.

For more information or engineering assistance, use our hyperlink above. To speak with our engineering staff
(over 60 years of plane bearing design) call 1-800-513-3163, Fax: 413-525-3735,
or email: mquinn@LM76.com
