PRODUCT OF THE MONTH JUNE 09

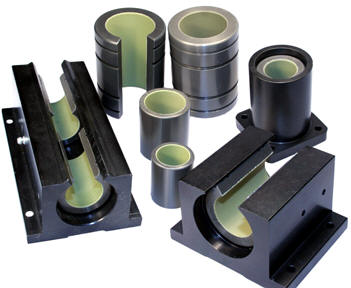

Make sure your self lubricating linear bearing has the
MINUTEMAN GREEN LINER.
PSI PV SFM Shaft Hardness Coefficient of Friction
5000 30,000 400 RC60, 300 Stainless Steel
Ceramic Coated Aluminum
 Runs Great on Both Hardened & Soft Shafting		 .09 - .12


APPLICATION & LOAD WORKSHEET
Please Print & Fax Back to LM76

ENGINEERING LINKS:

Bearing Design Data
 See LM76 Shafting for Optimum Performance
 Self Lube Liner Options

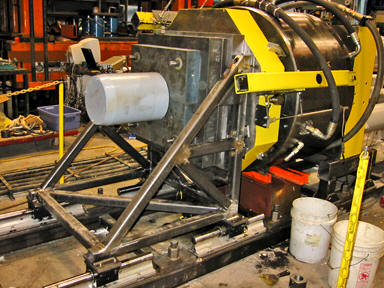

See how tough Minuteman Linear Bearings™ really is in bad conditions

   MINUTEMAN SERIES & SIZES:


Open and Closed Bearings
Inch Closed/Single Pillow Blocks
Inch Open/Single Pillow Blocks


Inch Closed/Twin Pillow Blocks

Inch Open/Twin Pillow Blocks

Flange Blocks


Self Lube TWM Bearings


3D Solid Models


METRIC SERIES OPEN & CLOSED
 SERIES TWM ( available in FDA/USDA
as BFS. Example: BSF12MM )


Minuteman Linear Bearings™ thrive in applications where the
following situations are present:

  • Simultaneous linear, oscillating and rotary motion in 1 bearing

  • Contamination - glass, metal shavings, abrasive dust

  • High Loads are Present - 10x's more than linear ball bearings

  • Water, Chemical Washdown/Submersion

  • Shock & Vibration - Dampens Vibration to Shaft & System

  • Smooth, Quiet Linear Motion is Required - Medical/Office

  • Linear & Rotary Motion Together are Required

  • Shaft Friendly Linear Motion is Required - will not groove shafting

  • Lower Pricing than Comparable Ball Bushings

  • Minuteman Linear Motion Bearings™ offer the latest in PTFE Composite technology
