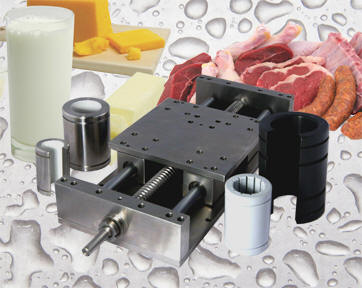

LM76 offers food process,
pharmaceutical,
packaging machinery and medical
equipment
engineers
3 off-the-shelf,
FDA/USDA
compliant linear
bearing
options.
Stainless Bearings
Stainless
Shafting
Stainless
Slides
Stainless
Systems |
Stainless
Steel/Self Lubricating,
FDA/USDA Linear Bearings
Stainless Steel
Pillow Blocks |
Our
first option has a 304 stainless steel shell
which features our FDA/USDA complaint
PTFE,
self lubricating liner. Available in
closed &
open
configurations
from
1/4" ID - 1.5" ID.
This is a
natural with our 304 SS Shafting
LM76supplies 303 stainless steel pillow blocks.
Standard configurations which are drop-ins.
|
FluidLine FDA/USDA/3A Dairy |
FluidLine
Linear Motion Bearings™ is a
self-lubricating,
low friction, lightweight, low wear material
which
is
excellent in
applications which
require FDA,
USDA and 3A compliance.
See FDA Fluidline Bearings
Video |
Ceramic Coated
Shell with
FDA/USDA Self Lubricating Liner |
Our
second option has a ceramic coated
shell
( FDA/USDA compliant ) coupled with
our
FDA/USDA
compliant self lubricating liner. This
style is less
expensive and 1/4 the
weight of our
stainless shell.
Available in closed
& open
configurations
from 1/4" ID
- 1.5" ID. Direct
drop-in replacement for
all inch
linear ball bearings.
This is a natural with our
ceramic coated
aluminum shafting.
|

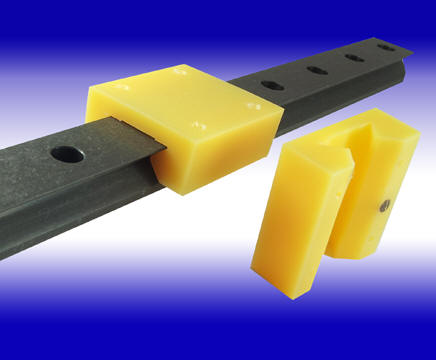

Slide Rail |
Our
third option is our Slide
Rail
Bearings™. Rail and block are
ceramic coated
while
the block employs our
FDA/USDA compliant, self lubricating liner.
Slide Rail Bearings and Slides are
dimensioned
in
inch, not metric.
|
Trust
your food process applications to LM76.
No single company has as many answers
for your linear needs when it comes to
compliance, design features, washdown
survivability or 24/7 durability.
Washdown
Rated Linear Bearings
Washdown Rated Linear Slides
Washdown Rated Linear Shafting
|

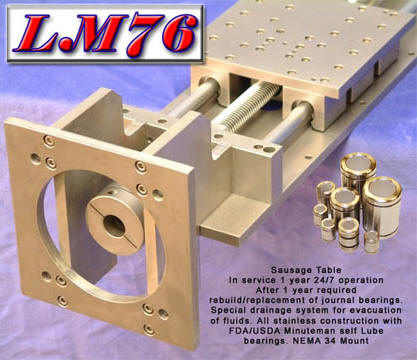

Meat Processing
385 SFM
Load: 350 lbs with Moment
Operation: 3 shifts 7 week
Wash Down
Reason for LM76:This system is constantly moving and is routinely
washed down with
corrosives. System requires FDA/USDA Compliancy.This system has operated for 1 year
and has only required the replacement of
journal bearings for the acme screw. System is constructed with 300 series
stainless steel and is self lubricating. |
|
PSI |
PV |
SFM |
Shaft
Recommendations |
Coefficient
of Friction |
|
1000 |
10,000 |
400 |
300 series stainless
Ceramic Coated Aluminum
Tolerance: Class L
See LM76 Shafting
|
.12 - .20 |
| |
|
1-800-513-3163
413-525-4166 Fax: 413-525-3735 |
- FDA/USDA Compliant
- Self-Lubricating
- Washdown Compatible
- Direct Food Contact
- Stainless or Ceramic Coated Shell ( both FDA/USDA acceptable )
-
Off-the-Shelf
Shipping
Did you know that LM76 is the one of nation's largest
supplier of 300 stainless steel shafting?
Call today for quote! 1-800-513-3163 |
|
|
DRIED FRUIT JUICE - NO
PROBLEM!
LM76
Linear
Motion Bearings™
are your best choice for fruit juice filling &
packaging lines. Dried-up fruit juice adheres
to shafting and freezes rolling element bearings
in
their tracks! This results in ball cage failure, shaft brinelling
( grooving )
and dreaded downtime. Replace your costly Stainless Steel linear ball bearings
with a less expensive, proven performer.
Did you know that the majority of all
hamburger patties
supplied to major fast food franchises worldwide are made on
equipment that employs LM76 linear
motion
bearings. LM76 is your first choice for
slaughtering, shaping, slicing, portioning,
stuffing and packaging!
|
|
